Free Ohm’s Law Lab Simulator
Ohm’s Law Lab Simulator lets students adjust power supply voltage, resistor values, series or parallel wiring, ammeter, voltmeter, and bulb options while current, voltage, resistance, power, data records, and the V-I graph update in real time.
Built for Ohm’s law homework, circuit lab practice, series and parallel circuit review, and unknown resistance measurement.
Start Ohm’s Law Lab Simulator here: set voltage and resistance, choose the connection mode, connect meters or a bulb, record readings, and watch the V-I graph prove the relationship between voltage and current.
Change the power supply, resistor values, connection mode, meters, and bulb before recording each reading.
Share the clean page or copy a result link that restores this Ohm’s Law Lab Simulator setup.
Virtual circuit lab
Current
0.200 A
Equivalent resistance
30.0 Ω
Power
1.20 W
V-I graph
| V | I | R |
|---|
Experiment conclusion
Ohm’s Law Lab Simulator uses ideal circuit models for learning. Physical circuits require safe voltage limits, correct meter placement, and teacher or lab guidance.
Ohm’s Law Lab Simulator connects circuit controls, meter readings, lamp brightness, equations, and graphing so learners see why current changes when voltage or resistance changes.

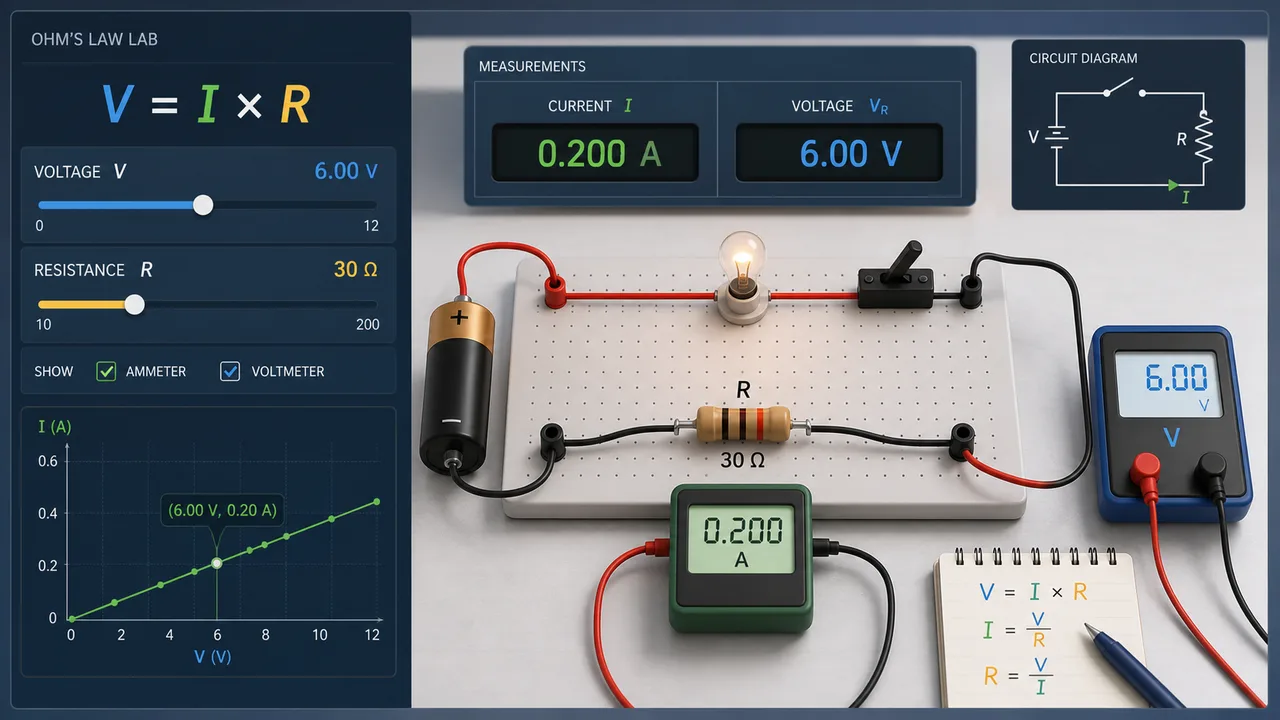

Set supply voltage, R1, R2, single, series, parallel, or unknown resistance mode, then connect or remove the ammeter, voltmeter, and bulb.

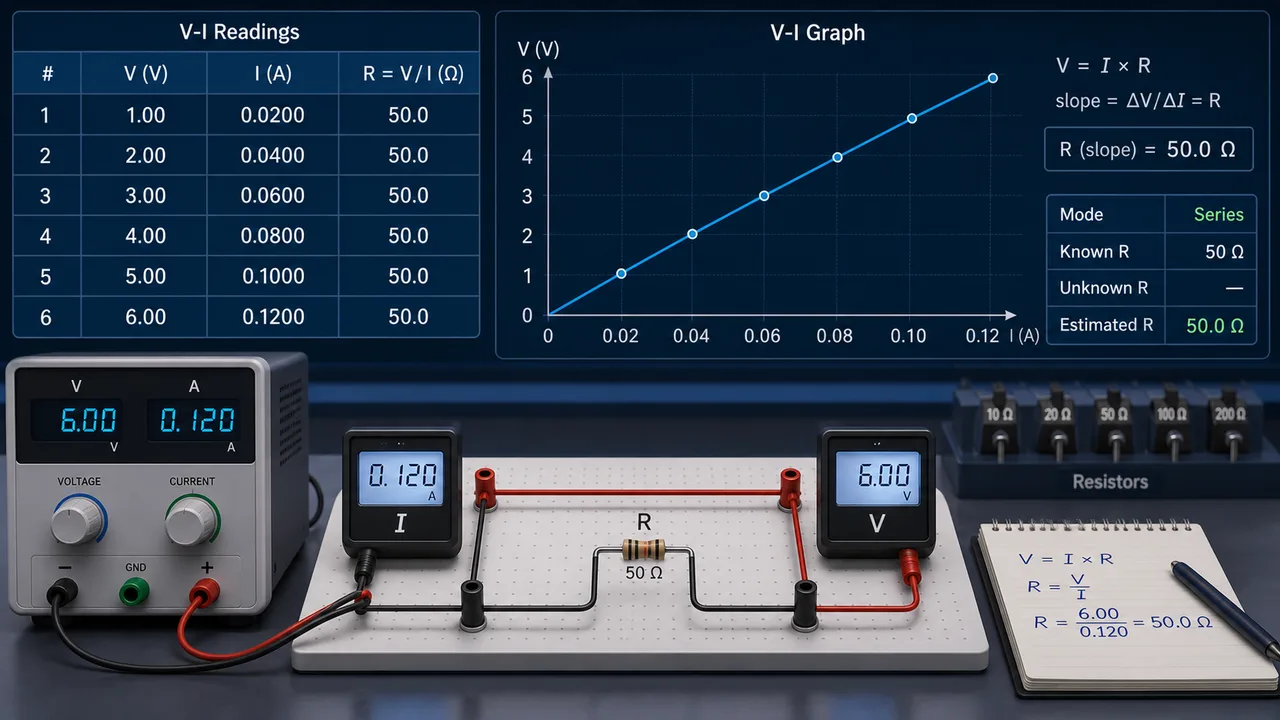

Record readings or generate a voltage sweep, then use Ohm’s Law Lab Simulator to compare the data table, straight-line V-I graph, and resistance estimate.
Use this Ohm’s Law Lab Simulator guide to connect voltage, current, resistance, series circuits, parallel circuits, and unknown resistance measurement.
Choose a voltage, resistor values, and connection mode. Keep meters connected when you want to read current and voltage directly.
Change voltage or resistance and click record data. The table stores voltage, current, and calculated resistance for comparison.
Use the V-I graph and unknown resistance mode to see that R = V ÷ I and that resistance is the slope when voltage is plotted against current.
For lab reports, describe which variable changed and which variable stayed constant.
Read FAQThese Ohm’s Law Lab Simulator features make voltage, current, resistance, and circuit connection rules visible on one screen.
Switch between single resistor, series circuit, parallel circuit, and unknown resistance practice.
See current, equivalent resistance, and power update from V = I × R as controls change.
Connect a bulb and watch brightness follow the calculated current.
Record repeated readings and compare voltage, current, and resistance in the data table.
Generate a V-I sweep and see why a constant resistor produces a straight line.
Copy a result link that restores the same voltage, resistance, circuit mode, meters, and bulb setup.
Ohm’s Law Lab Simulator helps learners move from formula memorization to circuit evidence.
Practice V = I × R, meter readings, V-I graphs, and unknown resistance problems before quizzes.
StudyDemonstrate how current changes when voltage rises or resistance changes.
ClassroomPreview ammeter and voltmeter placement before a real circuit activity.
Lab prepCompare single, series, and parallel resistance without rewiring physical parts.
